EE402

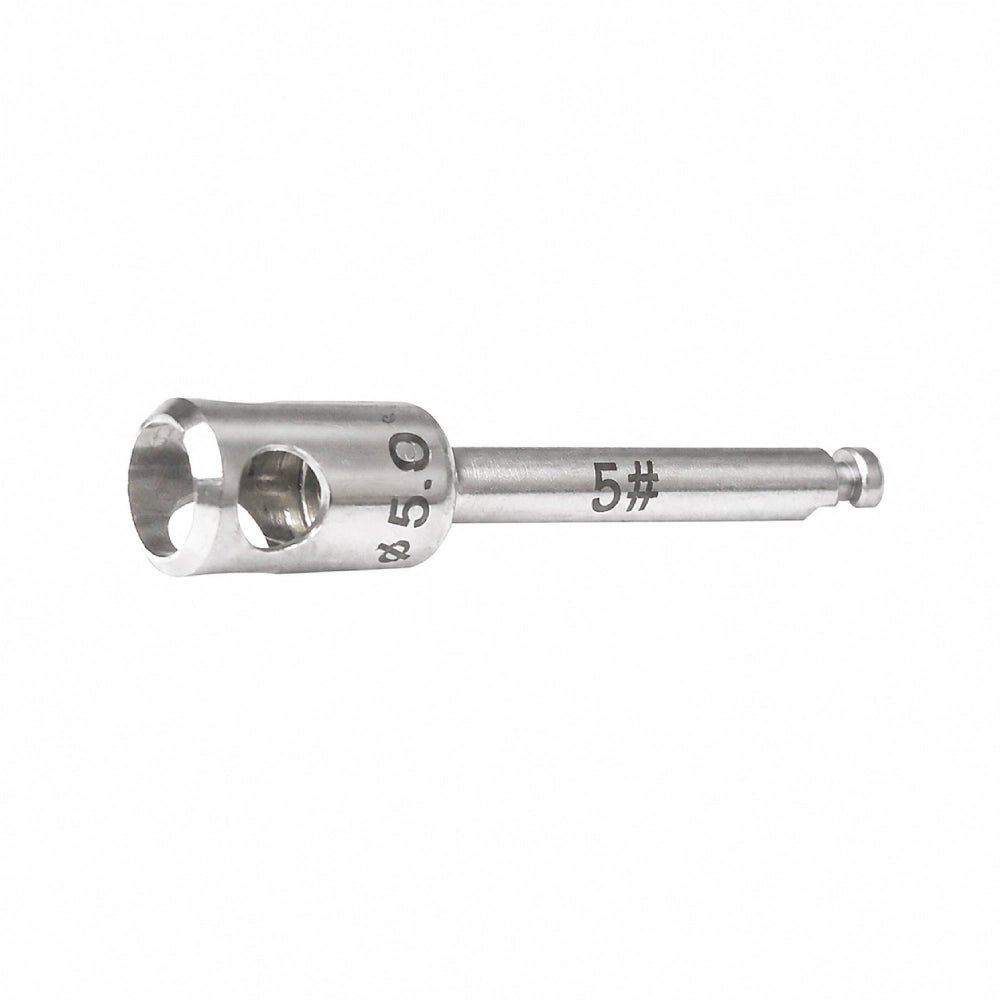

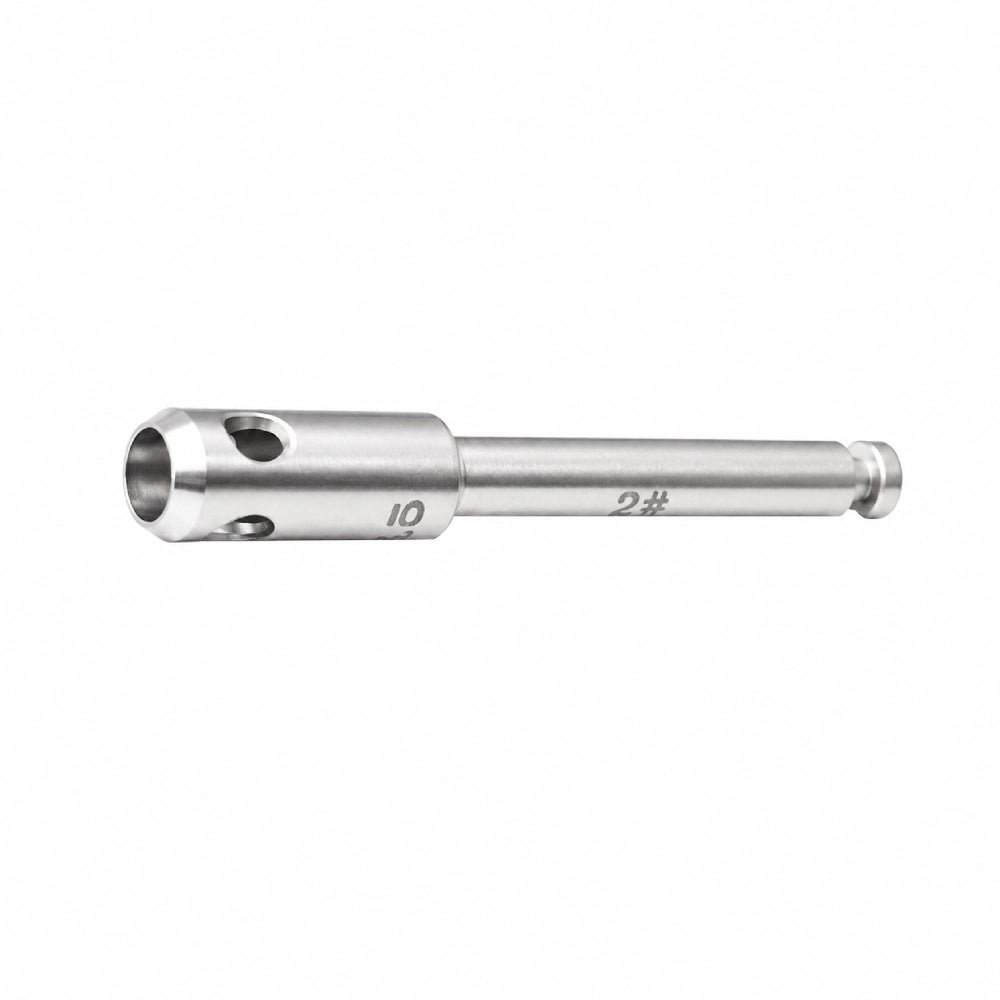

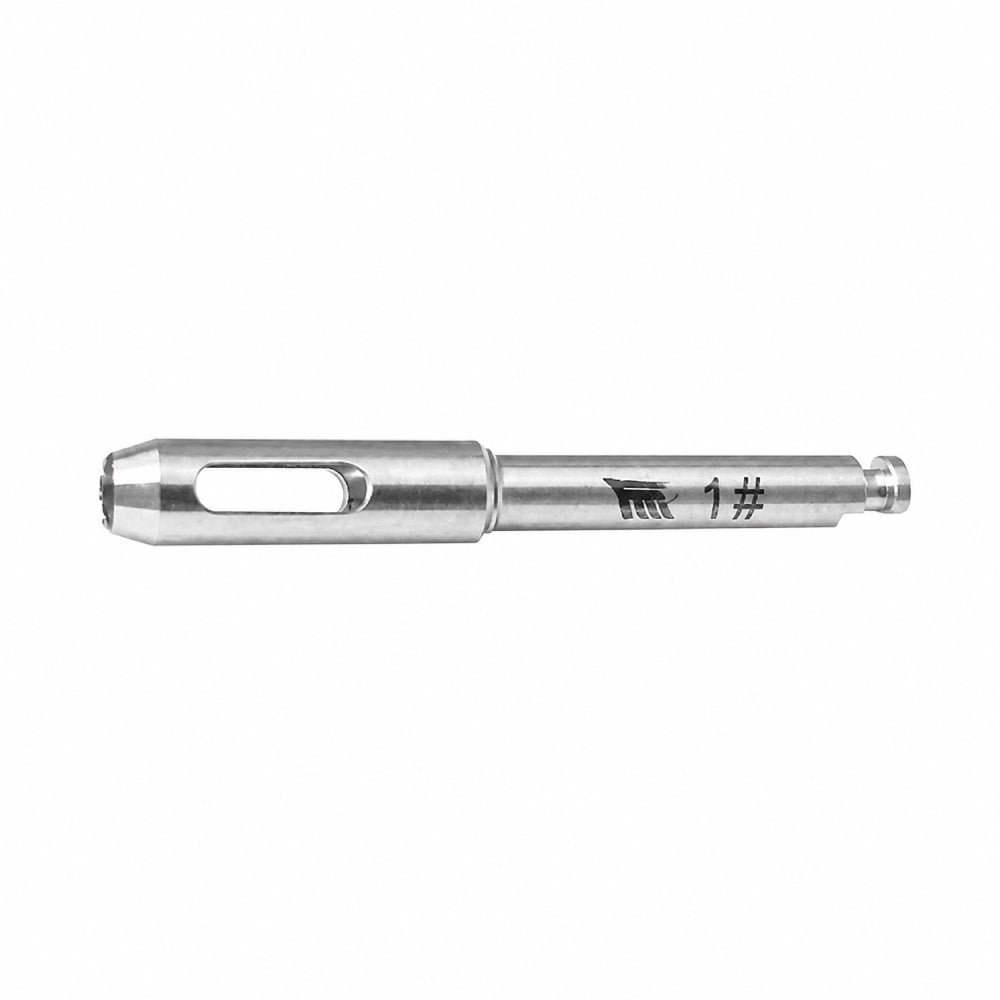

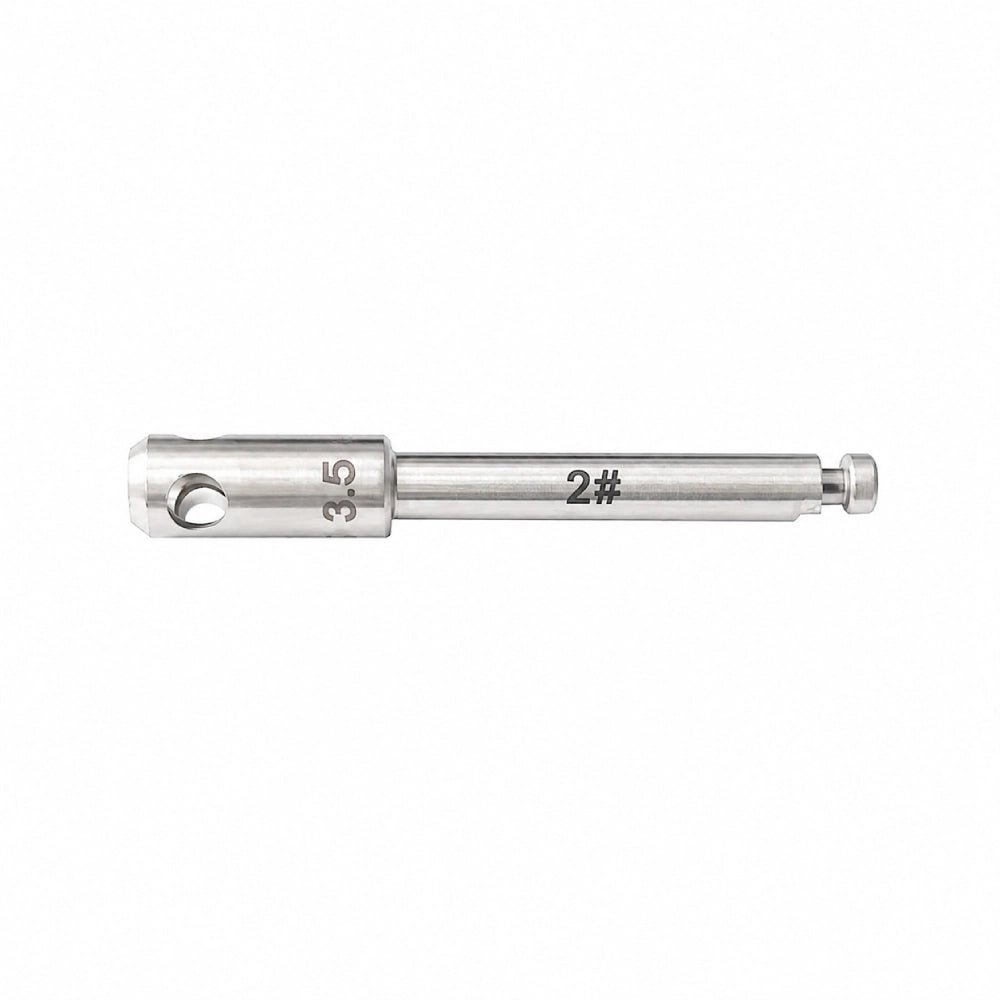

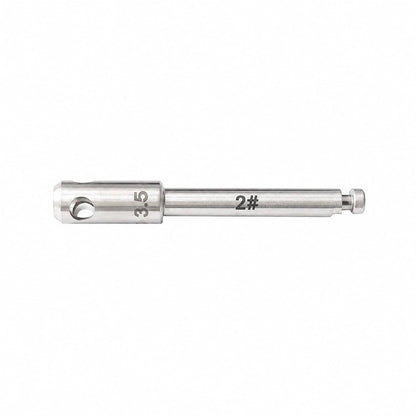

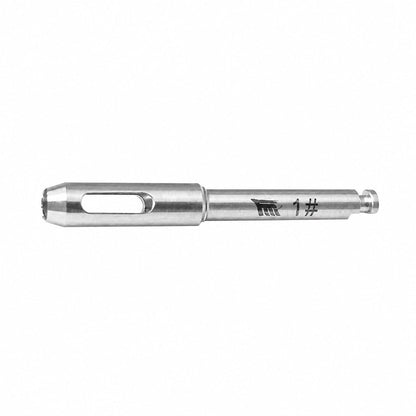

Contra-Angle Rotary Implant Tissue Punch

Contra-Angle Rotary Implant Tissue Punch

$69.00 USD
$69.00 USD
Sale Sold out
Shipping calculated at checkout.
Outer Diameter
Guaranteed Safe & Secure Checkout
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Free Global Shipping Over $50
  • 30 Days Money-back Guarantee
  • Secure Shop Payment
The Contra-Angle Rotary Implant Tissue Punch is designed for circular soft-tissue removal during flapless implant procedures, particularly for second-stage implant uncovering.
It allows the gingival tissue over a submerged implant to be circumferentially cut, providing access to the implant cover screw before placement of a healing abutment.
Multiple outer and inner diameter combinations are available for different implant-site requirements.

Key Features

  • Designed for flapless implant uncovering
  • Suitable for circular gingival tissue cutting over submerged implants
  • Helps provide access to the implant cover screw during second-stage procedures
  • Rotary design for implant soft-tissue procedures
  • Available in Ø3.0, Ø3.5, Ø4.0 and Ø5.5 mm
  • Defined inner and outer diameter for each available size
  • 10 mm working-end length
  • 26 mm overall length

Specifications

Outer Diameter Inner Diameter Length
Ø3.0 mm Ø2.0 mm 26 mm (Working End Length: 10 mm)
Ø3.5 mm Ø2.5 mm 26 mm (Working End Length: 10 mm)
Ø4.0 mm Ø3.0 mm 26 mm (Working End Length: 10 mm)
Ø5.5 mm Ø4.5 mm 26 mm (Working End Length: 10 mm)

Applications

Designed for implant soft-tissue procedures including:
  • Second-stage implant uncovering
  • Exposure of submerged implants
  • Circular removal of gingival tissue over the implant site
  • Access to the implant cover screw before healing abutment placement
  • Flapless soft-tissue management in implant procedures
