- Adjustable 5–50 N·cm Torque: Supports multiple torque settings for implant placement, abutment tightening and restorative procedures.
10–50 r/min Speed Control: Multiple speed settings accommodate different operating requirements.
- Torque-Reached Automatic Stop: The device emits an audible alert and stops automatically when the selected torque is reached.

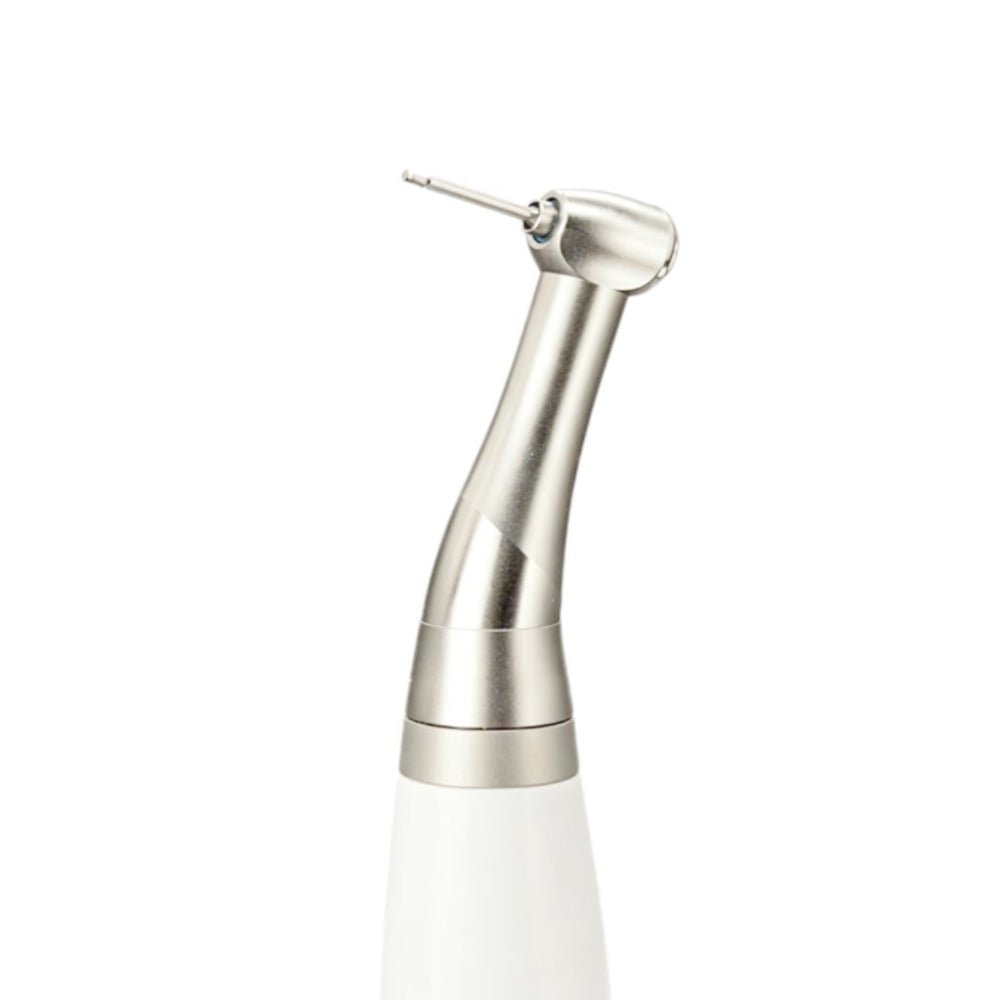

- Reinforced Stainless Steel Head: The widened and thickened integrated head is designed with reinforced internal gears for demanding dental workflows.
- One-Button Forward and Reverse: Quickly change the direction of rotation for installation or removal of implant components.

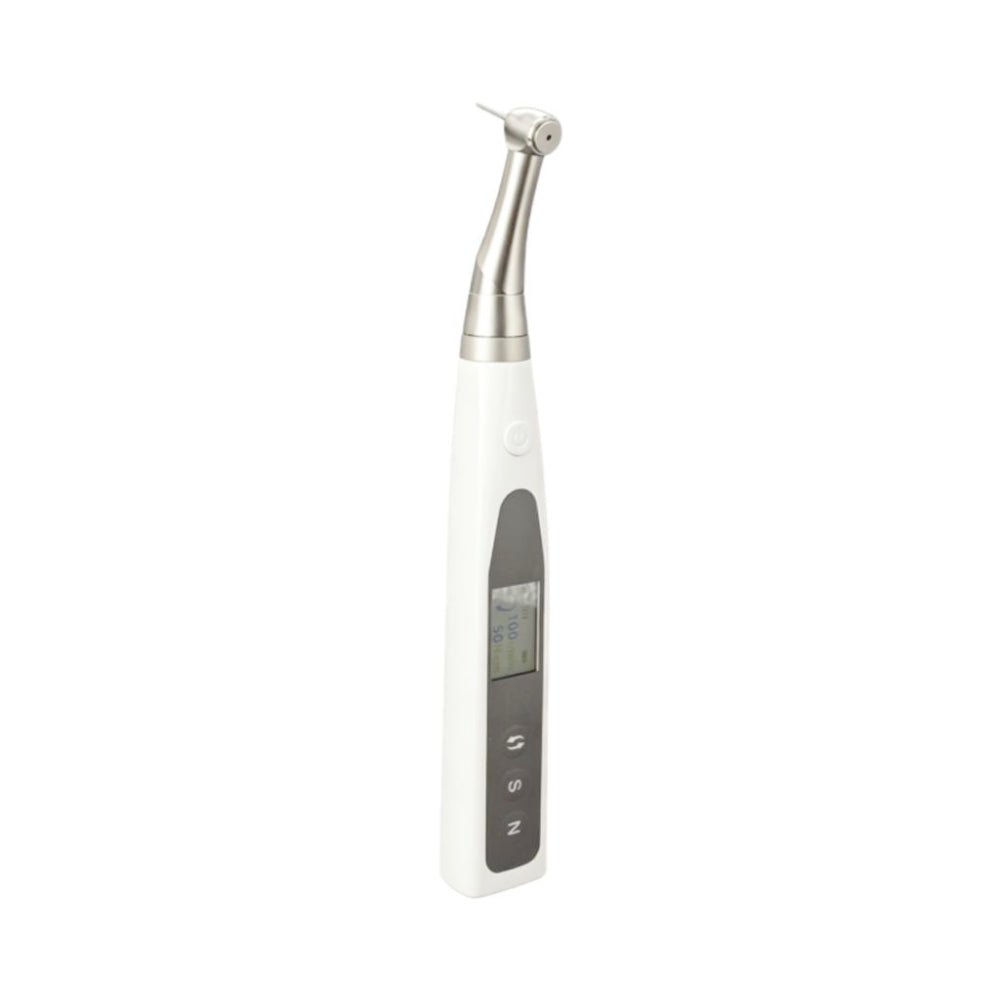

- Color Digital Display: Shows the selected speed, torque, rotation direction and remaining battery status.
- 800 mAh Rechargeable Battery: Provides up to approximately 10 hours of continuous operation after a full charge, according to the manufacturer.

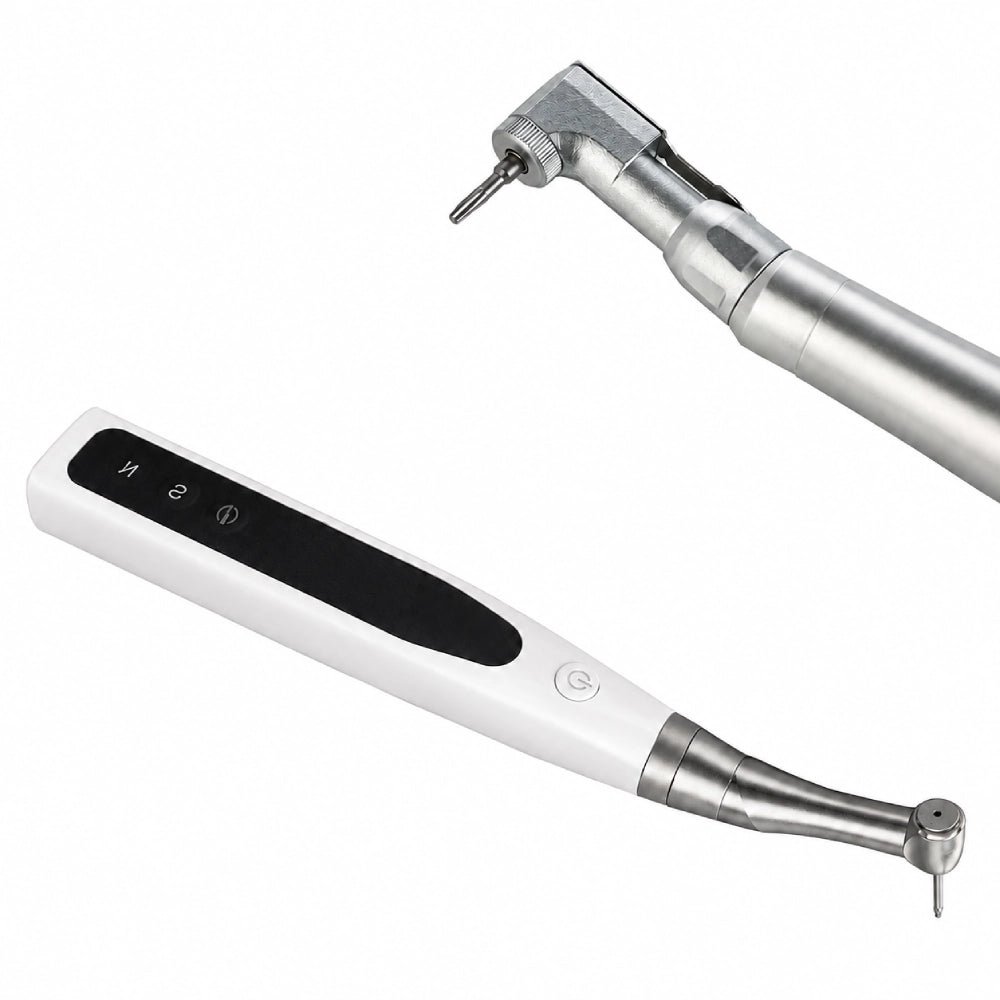

- Cordless Handpiece: Allows unrestricted movement without a power cable connected during operation.
Specifications
- Brand: HILAYA
- Model: XLY-DNBS300
- Torque Range: 5, 10 and 15–50 N·cm
- Speed Range: 10, 15 and 20–50 r/min
- Rotation: Forward and reverse
- Torque Notification: Audible alert
- Automatic Stop: Yes, when the selected torque is reached
- Head Material: Stainless steel
- Display: Color digital display
- Battery Capacity: 800 mAh
- Stated Continuous Operating Time: Approximately 10 hours after a full charge
- Power Supply: Rechargeable battery
- Application: Dental implant and restorative procedures
Applications
Designed for professional dental use during:
- Dental implant placement
- Implant abutment tightening
- Prosthetic screw tightening
- Healing abutment installation
- Implant and prosthetic component removal
- First-stage implant procedures
- Second-stage restorative procedures
Always select the torque recommended by the manufacturer of the implant or prosthetic component.
Operating Controls
The display allows the operator to check the selected torque, rotational speed, operating direction and battery status. Forward or reverse rotation can be selected directly from the handpiece.
When the preset torque is reached, the wrench emits an audible alert and automatically stops to help prevent continued powered tightening beyond the selected setting.
Important Notes
Intended for use by trained dental professionals.
Always follow the implant or prosthetic component manufacturer’s recommended torque.
Do not use the maximum 50 N·cm setting for every implant component.
Driver compatibility depends on the driver installed in the contra-angle head.
Do not place the electronic handpiece in an autoclave.
Sterilization instructions for the detachable head and accessories must be confirmed in the supplied user manual.

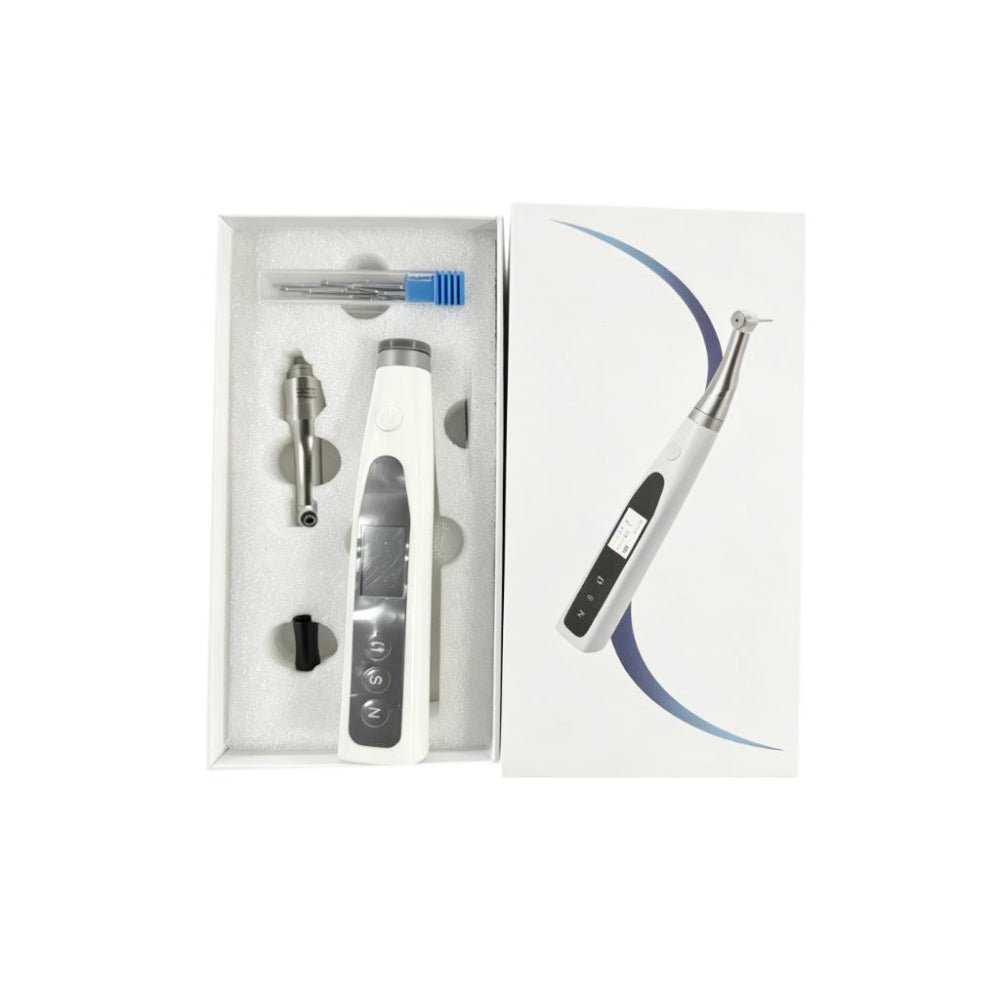

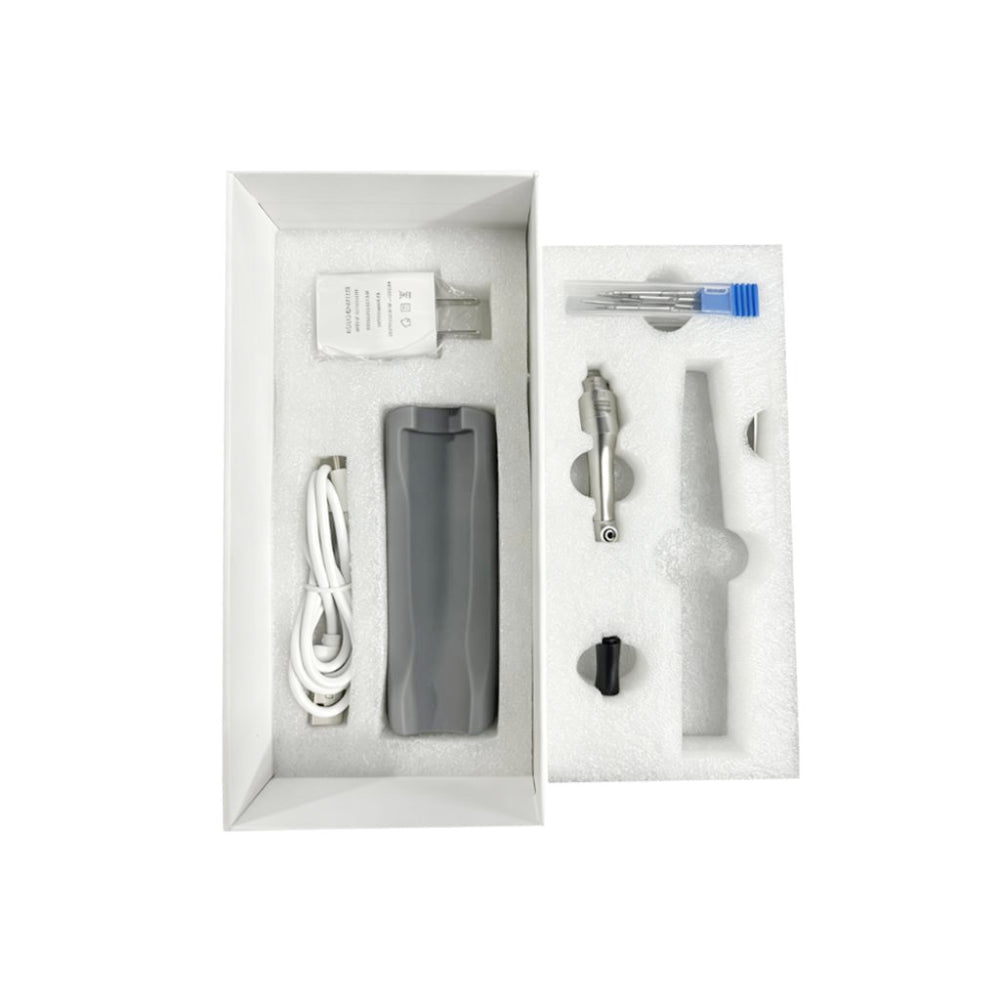

Available drivers and package contents should be confirmed before ordering.
