Dental Bone Plate and Bone Cylinder Drill

The Bone Graft Fixation Drill is available in 1.0 mm and 1.2 mm diameters and features a twist-drill cutting head with depth reference markings. Select the appropriate drill diameter according to the requirements of your fixation protocol.
Designed for predrilling holes in bone plates, blocks and cylindrical bone grafts during dental bone graft fixation procedures.

Drill Features

• Two Diameter Options
  Available in Ø1.0 mm and Ø1.2 mm diameters, both with a length of 30 mm. Select the appropriate diameter according to the required hole size and the drilling specifications of the fixation screw system.

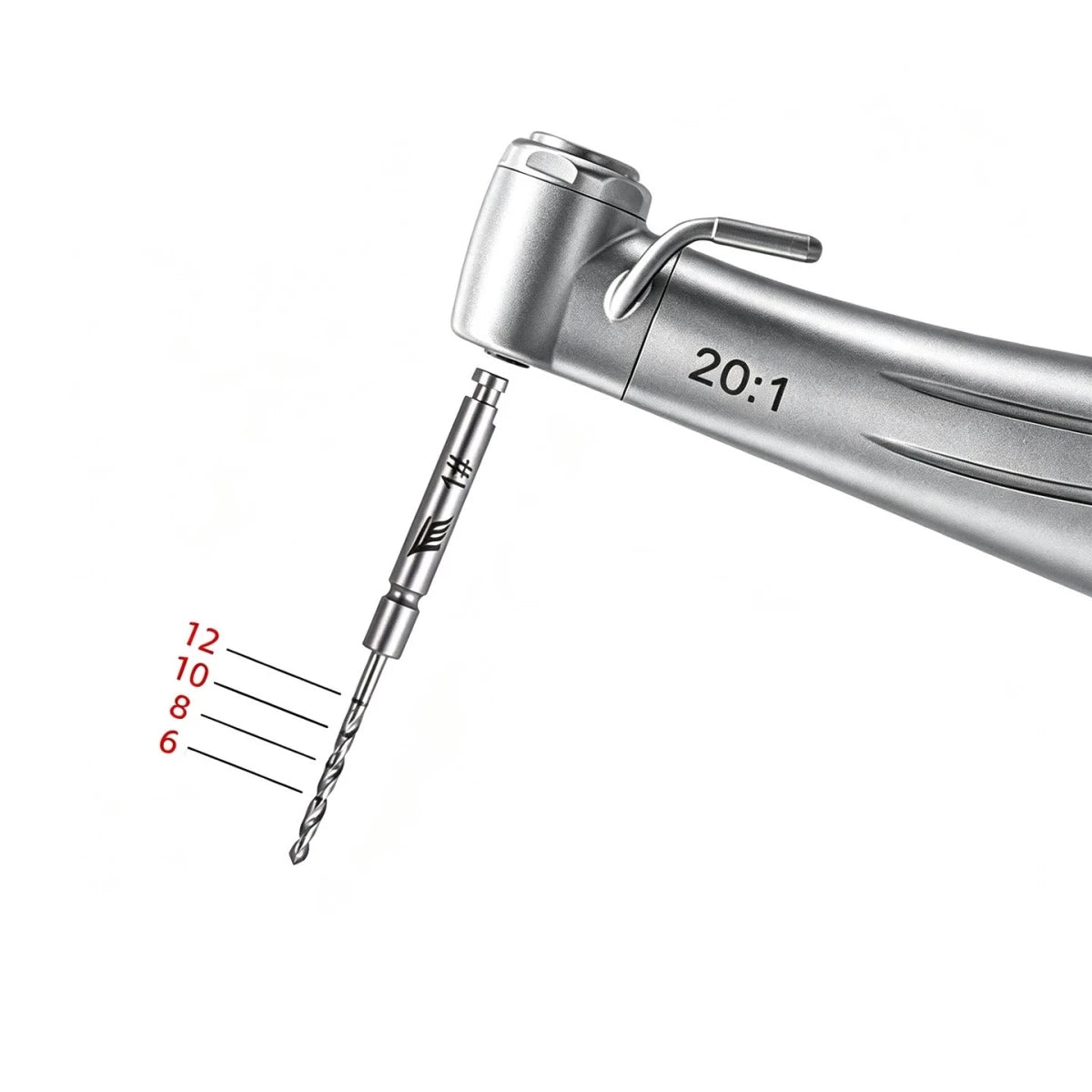

• Depth Reference Markings
  Visible markings at 6, 8, 10 and 12 on the cutting section provide a reference for monitoring drill insertion depth.

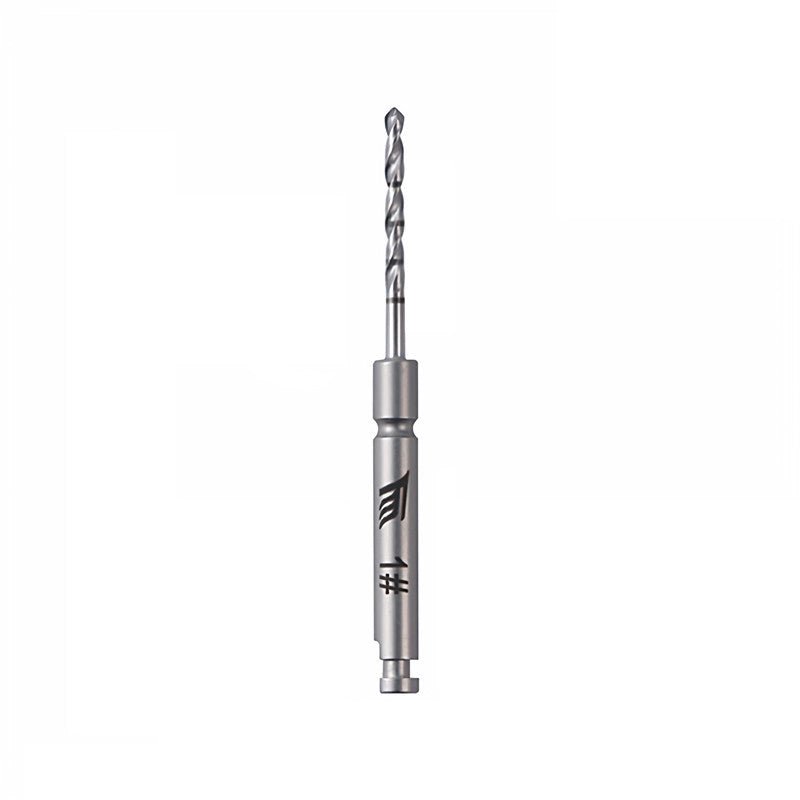

• Twist-Drill Design
  The fluted cutting head is designed for drilling holes in bone graft blocks.

• For Bone Graft Preparation
  Designed to prepare fixation holes in bone plates, blocks and cylindrical bone grafts used in dental bone augmentation procedures.

Selection Guide

Select the diameter specified by the fixation system or surgical protocol being used.
Drill diameter and screw diameter are separate specifications. Do not assume that a 1.0 mm drill is suitable for every 1.0 mm fixation screw.

Important Notes

1. For professional dental use.

2. Verify the required drill diameter and handpiece connection before use.

3. Follow the manufacturer’s instructions for operating speed, irrigation and instrument reprocessing.

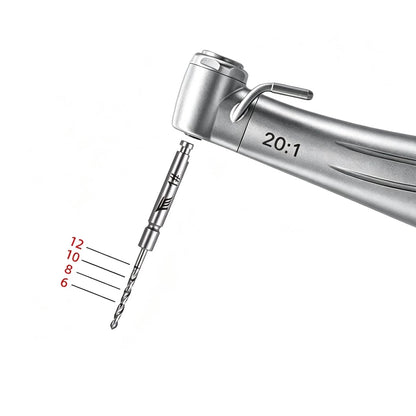

4. The implant handpiece shown in the reference image is for illustration only and is not included.
