This dental trephine drill is designed for bone harvesting during dental bone grafting procedures, including bone ring and cylindrical bone graft preparation.
The hollow cutting head features a serrated rim and an elongated side window. Depth markings at 4, 6, 8, 10 and 12 mm provide a visual reference during preparation.
Features
Hollow Trephine Design A circular, serrated cutting rim is designed to cut around the bone section being harvested.
Elongated Side Window The opening provides visibility into the hollow working head.

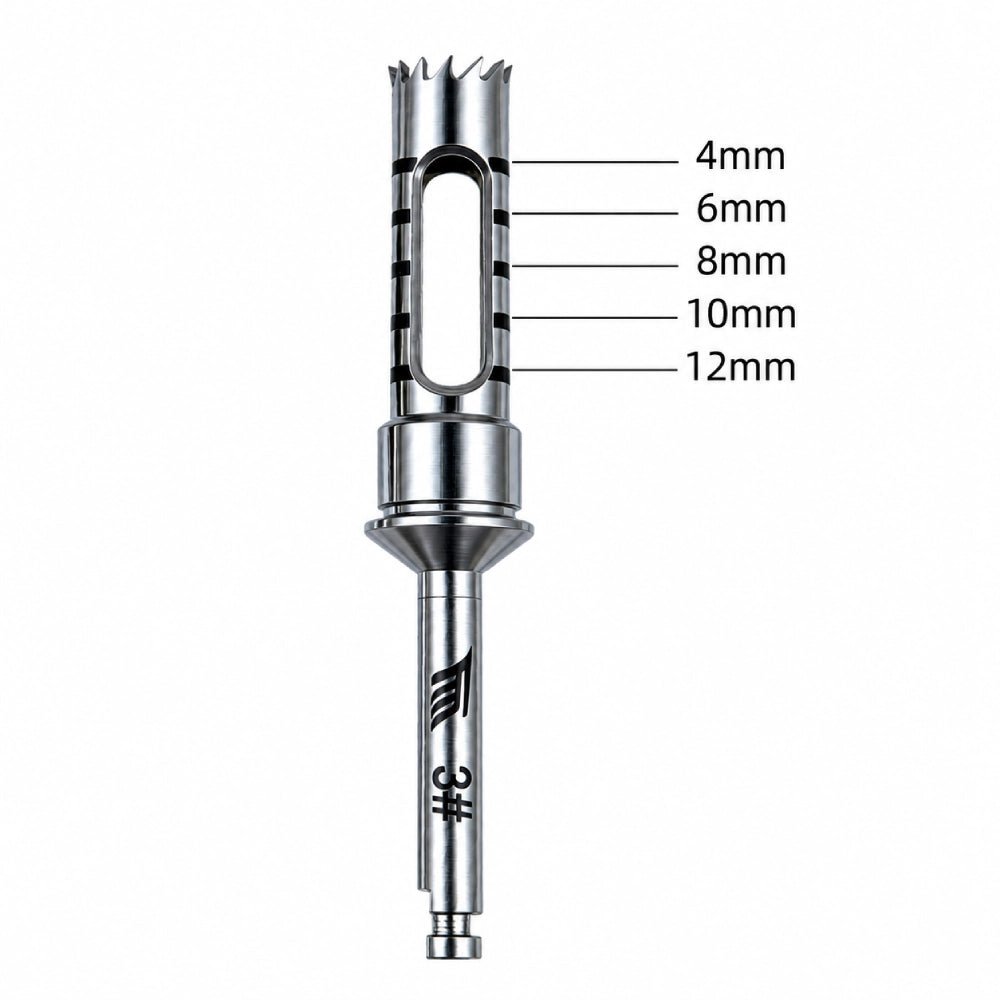

Depth Markings Markings at 4, 6, 8, 10 and 12 mm provide a visual depth reference.
Eight Diameter Options Outer diameters increase in 0.5 mm increments from 3.5 to 7.0 mm.

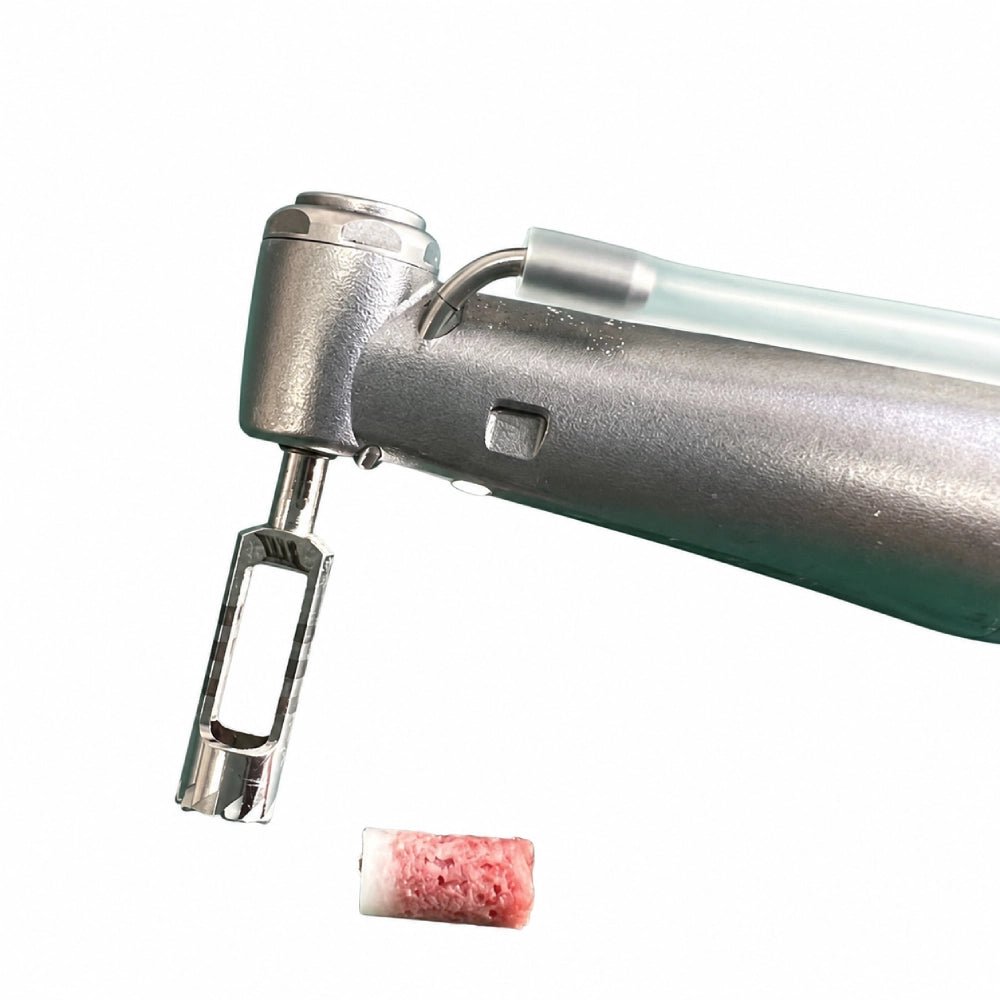

Contra-Angle Connection Designed for a dental implant contra-angle handpiece, with an approximate overall length of 34 mm.
Specifications
Specification
Details
Product type
Dental trephine drill
Intended application
Bone harvesting and bone ring or cylindrical bone graft preparation
Cutting head
Hollow, with a serrated cutting rim
Side window
Elongated opening
Outer diameter range
3.5–7.0 mm
Inner diameter range
2.5–6.0 mm
Diameter increments
0.5 mm
Depth markings
4, 6, 8, 10 and 12 mm
Overall length
Approximately 34 mm
Connection
Dental implant contra-angle connection
Outer diameter is the outside diameter of the cutting head. Inner diameter is the opening inside the trephine.
Applications
Bone harvesting for dental bone grafting procedures.
Cutting the outer circumference during bone ring preparation.
Preparation of cylindrical bone grafts.
FAQ
Do the selectable sizes indicate the inner or outer diameter? The selectable sizes indicate the outer diameter. Each option has an inner diameter that is 1.0 mm smaller, as shown in the size guide.
Can this drill be used for bone ring and bone cylinder preparation? The trephine cuts around the outer circumference of the bone section. It can be used during bone ring or cylindrical bone graft preparation, with additional preparation steps determined by the procedure.
Does the side window provide internal irrigation? The side window is an opening in the working head. It should not be interpreted as a confirmed internal irrigation system.
Does the drill include a depth stop? The drill has depth markings at 4, 6, 8, 10 and 12 mm. A mechanical depth stop is not included in the listed configuration.
Is this a complete set? Each purchase includes one drill in the selected diameter. The eight sizes are individual options.
